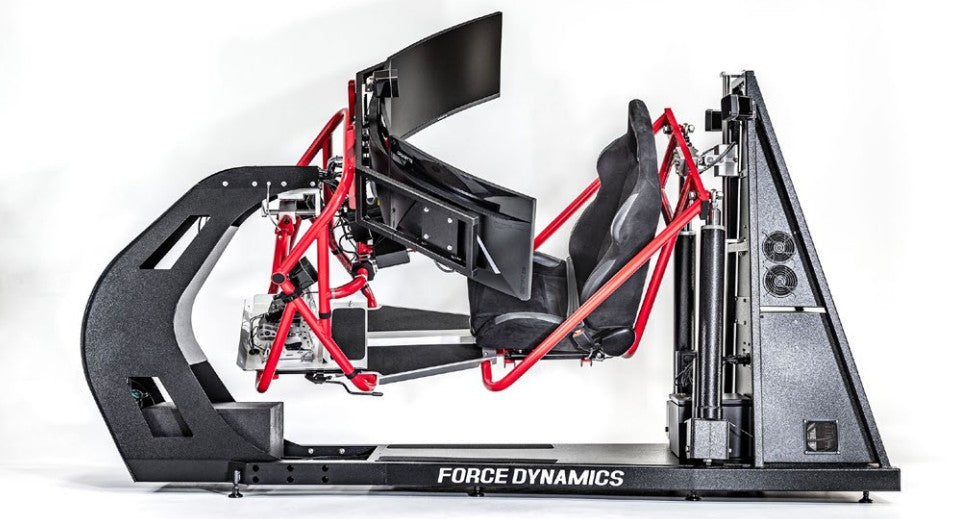

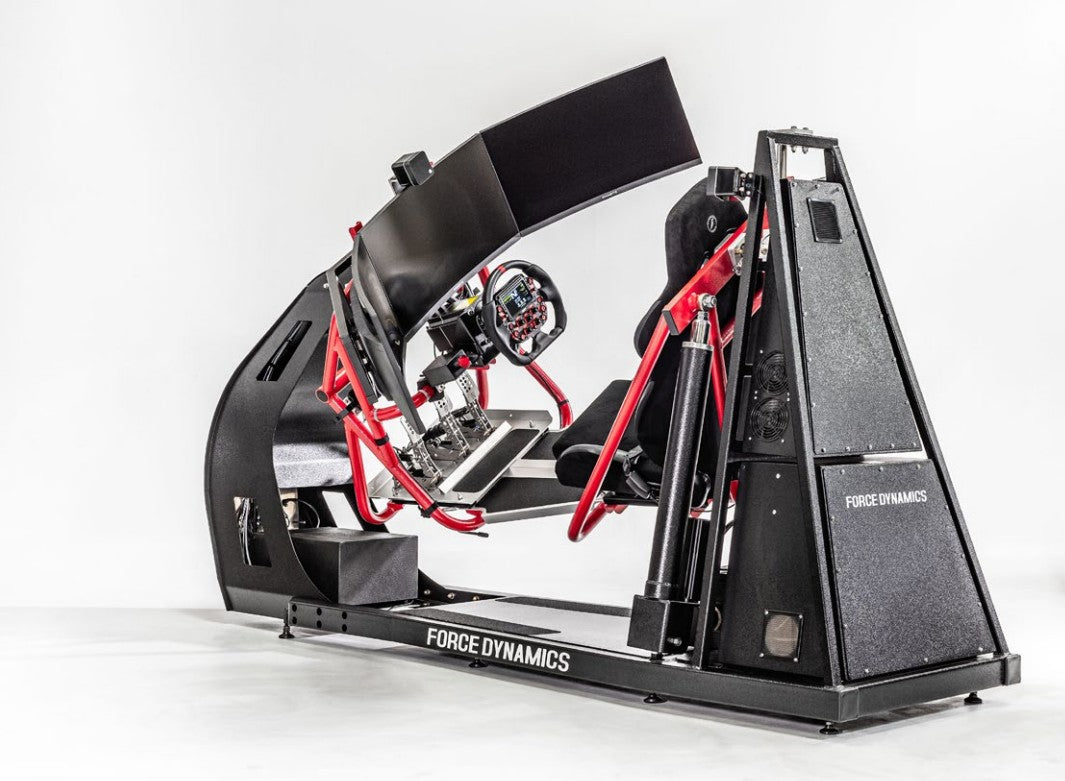

Force Dynamics 202 RTR Motion Platform

Force Dynamics 202 RTR Motion Racing Simulator Description

The 202 provides unparalleled dynamic performance, more than 10x that of competitors and is designed concept-forward to maximize the cues that work best for driving simulation, and to deliver them with superlative quality.

Most other "motion simulators" are actually cueing devices: They bump up and down so you feel road texture, camber changes, and so on. But with small range, low speed, and disconnected monitors, they can't trick your inner ear into thinking you're accelerating, braking, or cornering. The 202 was designed to provide enough motion range so your inner ear triggers your sense of lateral loading as you corner. No competing platform will let you feel changes in your apex speeds consistently, lap after lap. And no other four-post rig, gimbal platform, or seat mover can help you feel every detail of vehicle motion, consistently and correctly, the way the 202's large range allows.

What's Included

202 RTR motion platform, ready to run
Includes:
- Triple curved 27" LCD displays

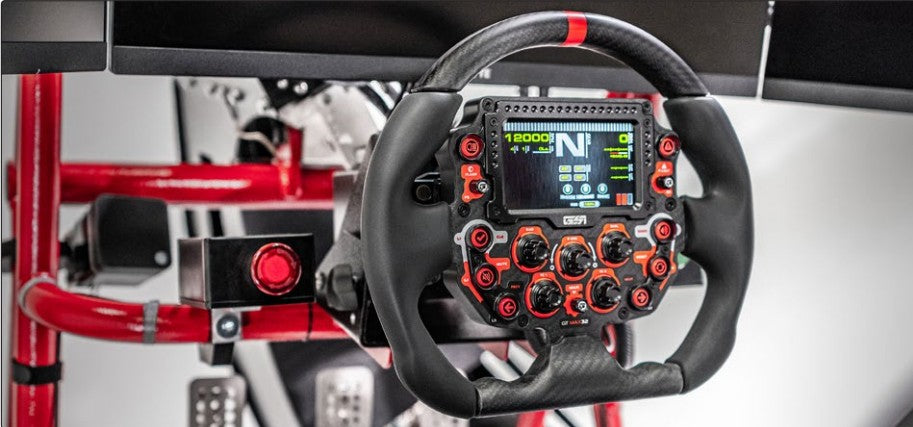

- Moza R16 direct drive wheelbase and RS wheel rim
- Heusinkveld Sprint pedals
- Integrated gaming PC
- Corbeau Forza seat
- 500w 2.1 sound system with 300w subwoofer, 100w satellite speakers
- 120VAC or 240 VAC 50-60 HZ power

Component Uptime

Uptime is a critical consideration for commercial projects, and the 202 has the advantage of being relatively simple both mechanically and electronically. The servo drives and motors used are industrial rather than consumer or custom manufactured to reduce costs, and have been used successfully in the more-demanding 301 and 401cr platforms since 2021.

The 202 has been deliberately overdesigned to ensure a long commercial operating life. We've used 3/4" rod ends where 5/8 or 1/2 might suffice; thick walled tubing; and precision linear bearings in struts and guide rails.

Component                                 Estimated Minium Life

Actuators                                      100,000 hours

Front Pivot Assembly                    50,000 hours

Rod ends, bushings                      50,000+ hours
