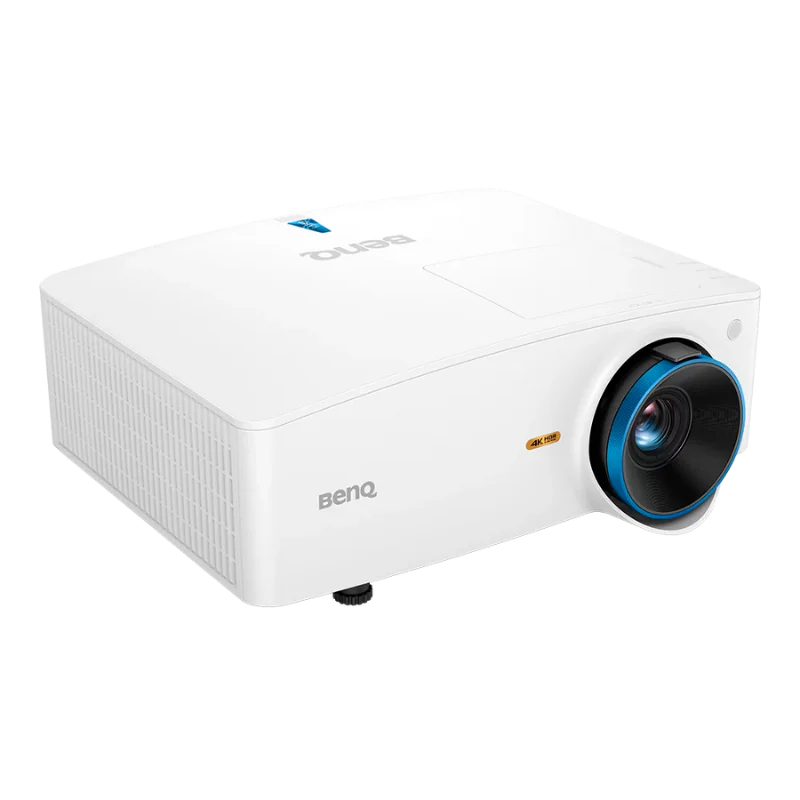

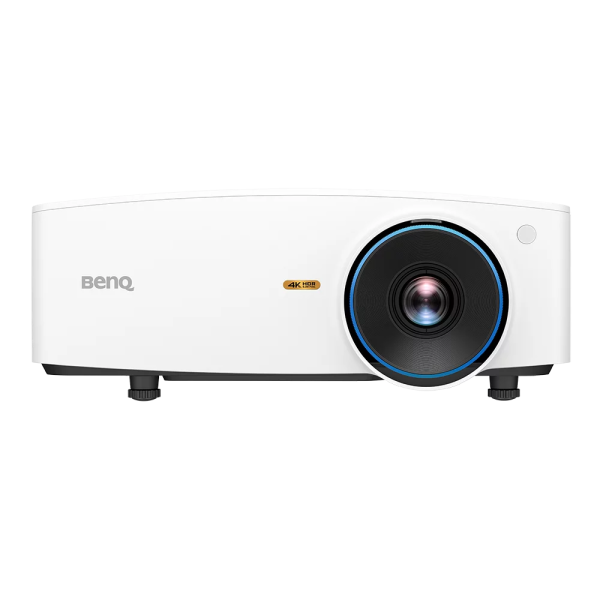

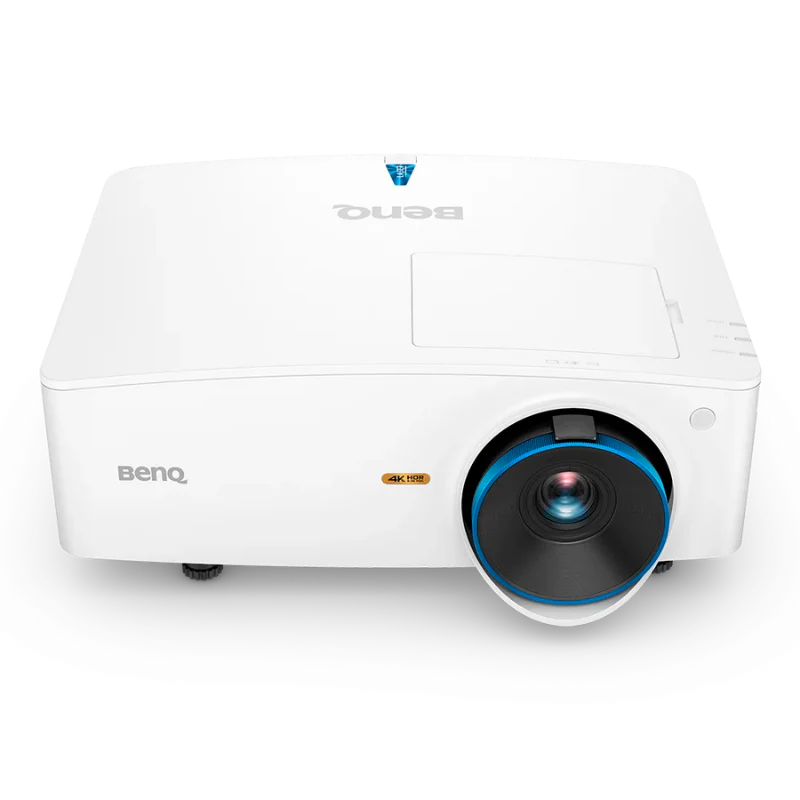

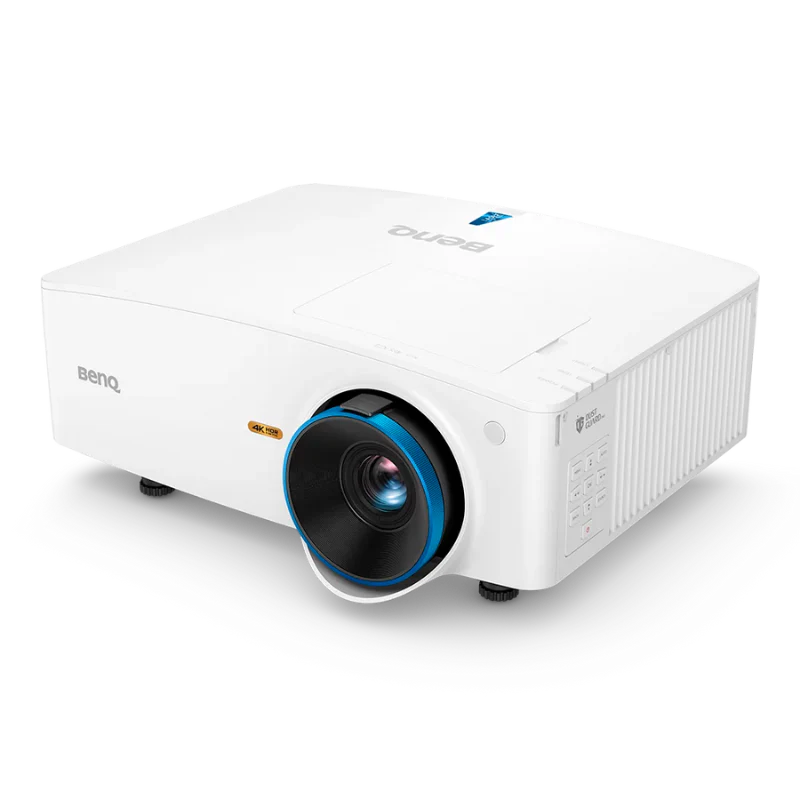

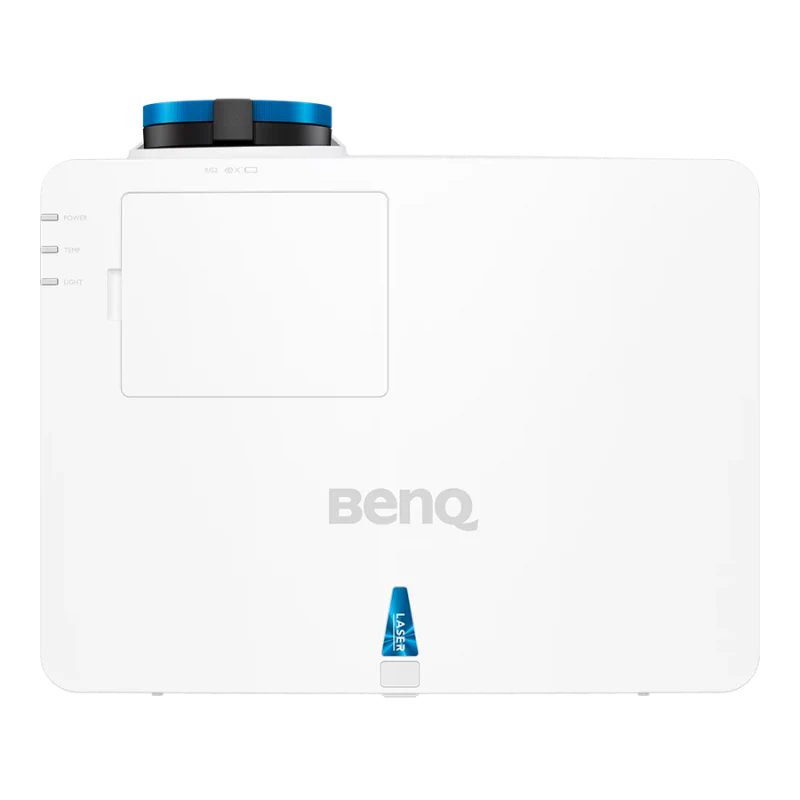

BenQ LK935 5500 Lumen 4K Laser Normal Throw Golf Simulator Projector

BenQ LK935 Description

Elevate your golf simulator studio with the BenQ LK935 5500 Lumen 4K Laser Normal Throw Golf Simulator Projector. With its 5500 lumen brightness and high 4K resolution, it ensures crystal-clear visuals, while utilizing BenQ's signature Golf Picture Mode.

The LK935 features a 16:9 native aspect ratio and a 1.36~2.18 throw ratio, making it an ideal candidate for golf simulator studios that require the projector to be mounted behind the golfer for a normal throw configuration.

The LK935 offers versatile installation options with large lens shift, 1.6x zoom, and 3D keystone correction, enabling you to mount the projector in off-center locations without having to reconfigure your golf simulator studio. Users will benefit from robust IP5X protection and a 20,000-hour laser light source lifespan, eliminated the need for lamp replacements.

Specifications

Display:

• Brightness (ANSI lumens): 5500
• Native Resolution: 4K UHD (3840x2160)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 2.4:1, 21:9
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: a. Normal 20000 hrs

Optical:

• Throw Ratio: 1.36~2.18
• Zoom Ratio: 1.6x
• Lens: F/# =1.809 f= 8.6 ~ 9.4
• Projection Offset (Full-Height): 0%
• Keystone Adjustment: 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees
• Lens Shift Vertical: -60%~ +60%
• Lens Shift Horizontal: -23%~ +23%

Picture:

• Rec. 709 Coverage: 92%
• Picture Modes: 3D, Bright, DICOM SIM, Golf, Infographic, Presentation, sRGB, User 1, User 2, Video, Video Conference

Compatibility:

• Input Lag: 33.4 ms (1080p@60Hz)
• Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
• Horizontal Frequency: 15K~135KHz
• Vertical Scan Rate: 23~240Hz

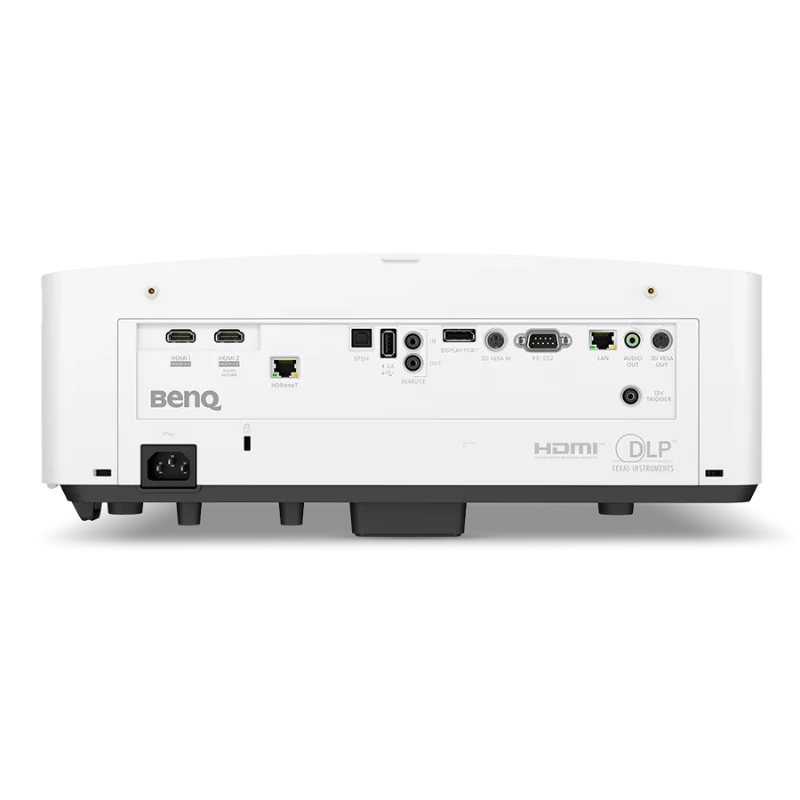

I/O Interface:

• HDMI in: (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
• Display Port: (x1)
• LAN (RJ45): (x1)
• HDBaseT (RJ45): (x1), Video/Audio
• 3D Sync in: (x1), VESA
• 3D Sync out: (x1), VESA
• USB Type A: (x1), USB Type A-1 (2.0/Power Supply2.0A)
• RS232 in (DB-9pin): (x1)
• Wired Remote in (3.5mm Mini Jack): (x1)
• Wired Remote out (3.5mm Mini Jack): (x1)
• DC 12V Trigger (3.5mm Jack): (x1)

Audio:

• Speaker: (x1), 10W
• Audio out (3.5mm Mini Jack): (x1)
• HDMI Audio Return: Yes, ARC, 5.1 channel
• S/PDIF: Multi-Channel, RAW

Environment:

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 440W
• Stand-by Power Consumption: <0.5W
• Network Stand-by Power Consumption: <2W
• Acoustic Noise (Typ./Eco.)(dB): 40/33

Accessories:

• Remote Control w/ Battery: RCA011
• Power Cord (by region): x1 (1.8M)
• 3D Glasses: (Optional), DGD5
• Installation Guide: Yes
• Warranty Card (by region): Yes
• Universal Ceiling Mount: (Optional), CM00G3

Dimension & Weight:

• Dimensions (WxHxD) (mm): 416x166x351
• Net Weight (kg): 7.0

Projection System:

• Projection System: DLP
